How-To

Scale App

TrueNAS Scale users, can configure this app from the easily from the UI. Store your wireguard config file in a directory, on one of your pools. Example /mnt/pool/vpn.conf (Name can be any name. eg wg0.conf, x-site.conf, etc) Example config content:

[Interface]
Address = 10.0.0.1/24
ListenPort = 51820
PrivateKey = PRIVATE_KEY

[Peer]
PublicKey = PUBLIC_KEY
AllowedIPs = 0.0.0.0/0
Endpoint = wg.example:51820

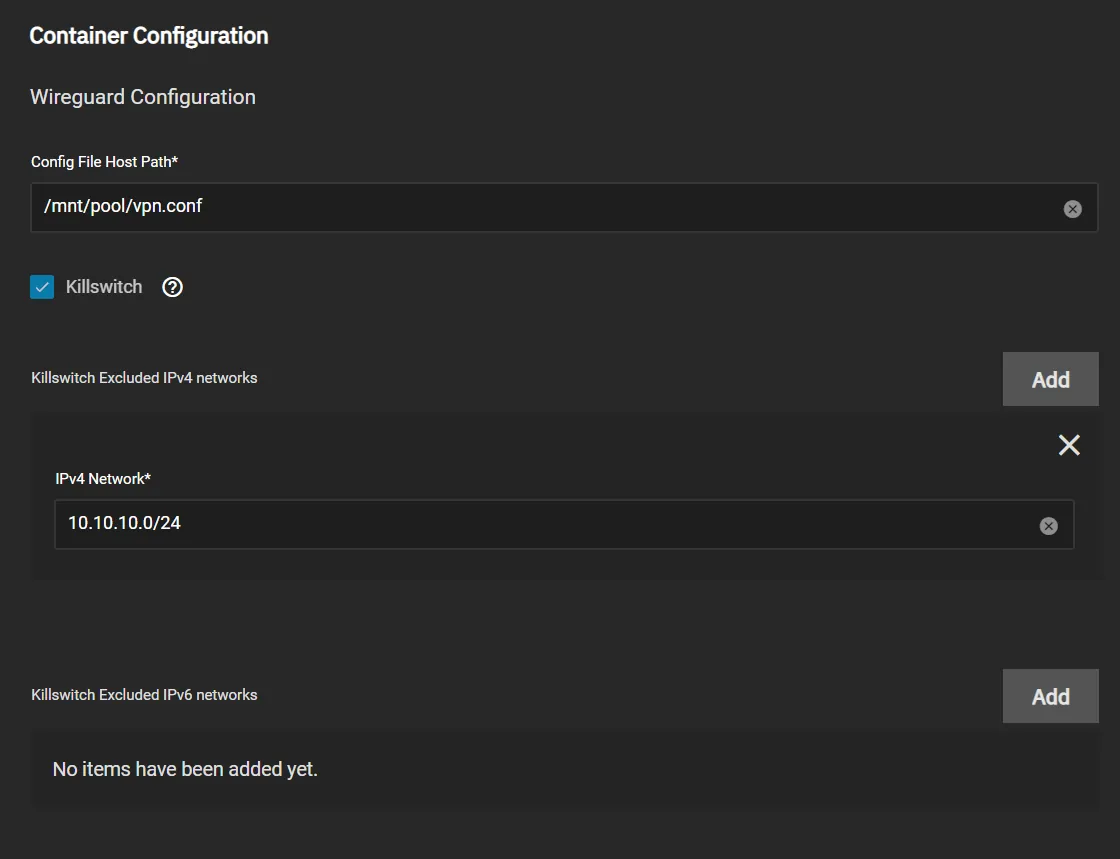

UI Configuration is simple as that:

Tick Killswitch if you want to kill traffic when VPN is down. Add networks in Excluded IPv{4,6} Networks that you want to continue their traffic when VPN is down.

That’s it!

Native Helm

Native helm users can modify values.yaml and add their wireguard config directly in there.

Example:

wg:
  # Set to true if you want to enable killswitch
  killswitch: false
  # If you want to exclude networks, do like so
  excludedIP4networks:
    - "10.10.10.0/24"
    - "192.168.1.0/24"
  excludedIP6networks: []
  # Leave empty if you going to use the paste your config bellow
  configFileHostPath: ""
  # Paste your config bellow.
  # Indentation matters!
  config:
    enabled: false
    # Your wg config here eg:
    data: |
      [Interface]
      Address = 10.0.0.1/24
      ListenPort = 51820
      PrivateKey = PRIVATE_KEY

      [Peer]
      PublicKey = PUBLIC_KEY
      AllowedIPs = 0.0.0.0/0
      Endpoint = wg.example:51820
