Installation Notes

Prerequisite

In order to get started, plug in your UPS via USB to the server node and before modifying the UPS service section.

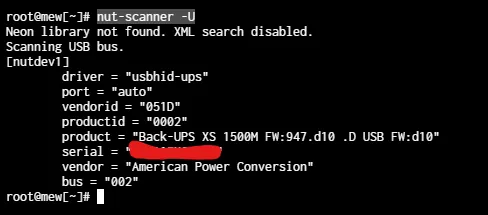

Go to your system shell on your node and run the following command to get the basic info for your UPS.

Terminal window
nut-scanner -U

nut-scanner

My UPS uses the usbhid-ups driver from driver = "usbhid-ups".

For me though my UPS is not listed in the list, however NUT states you can use others devices of similar models from the same manufacturer as long as its uses the same driver.

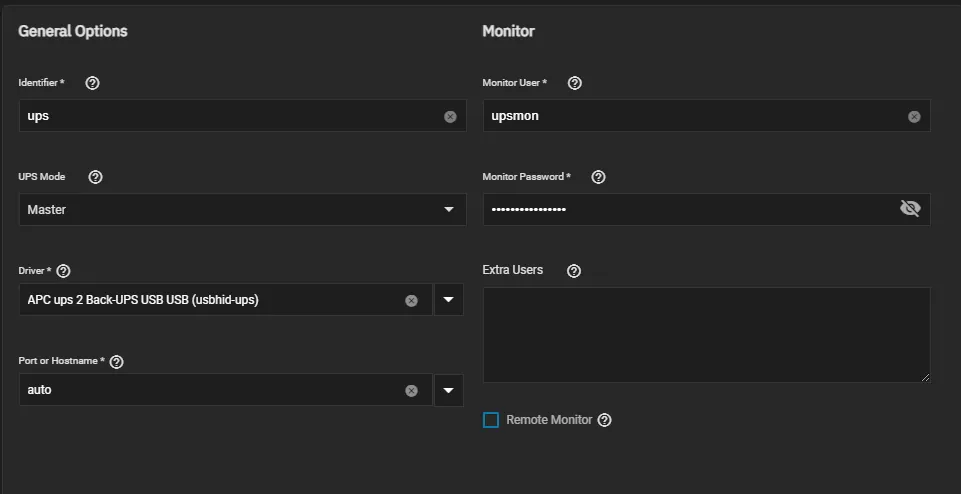

ups-server

You can change the Monitor User to whatever you want, I kept it default for simplicity.

I highly recommend securing the Monitor Password with a lengthy password. Special characters do work, but only tested a few.

The UPS Mode should be set to Master which means its the server and not the client.

The port or hosthame can be just left at auto.

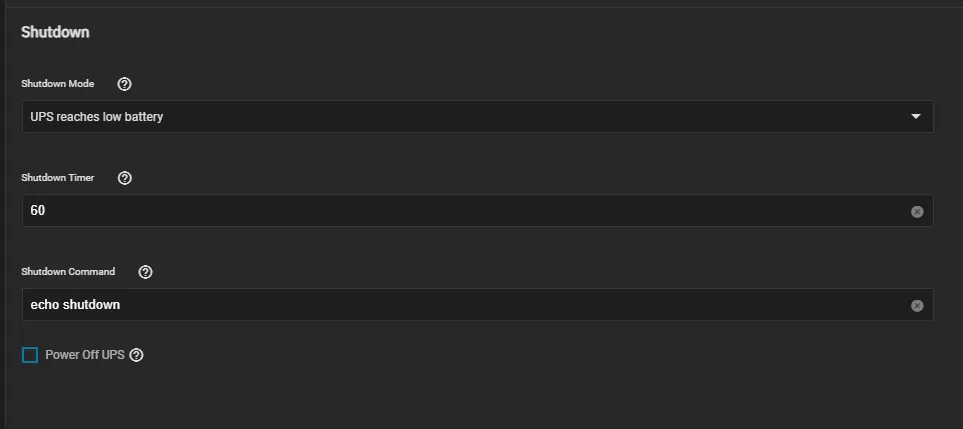

ups-shutdown

Please set an actual shutdown command, all this will do is echo shutdown in the console.

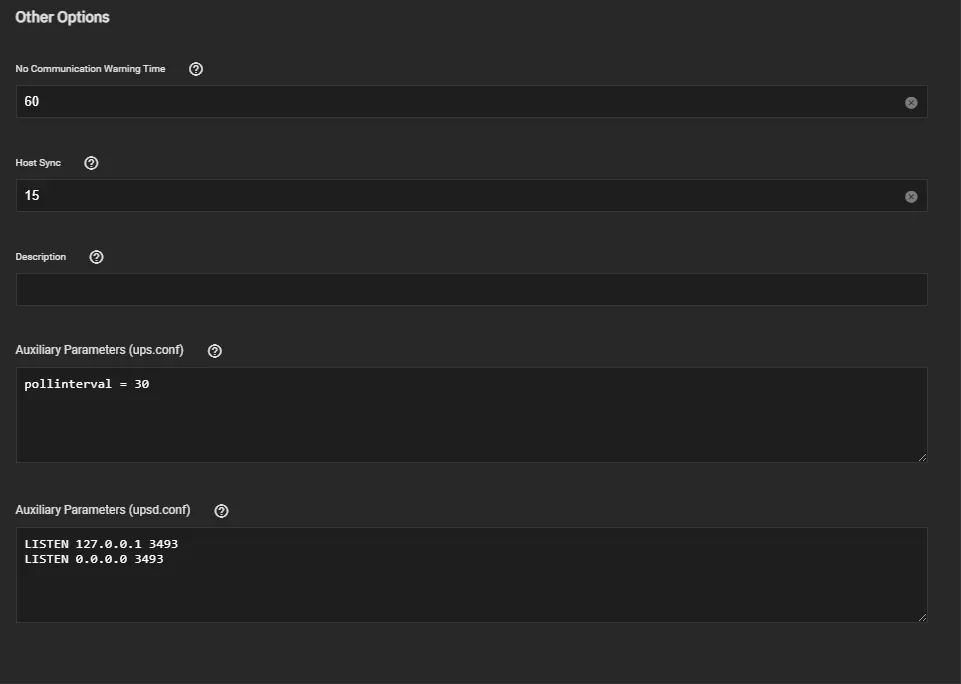

ups-other

For Auxiliary Parameters this is what I used:

LISTEN 127.0.0.1 3493
LISTEN 0.0.0.0 3493

WebNUT Installation

  • Set UPS User to the username defined for the Monitor User.
  • Set UPS Password to the password defined for the Monitor Password.
  • Set UPS Host to the local IP of your server.
  • Set UPS Port to 3493 which is typically the default port.

In order to access the webGUI, you will need to add ingress otherwise it will refuse to connect.
